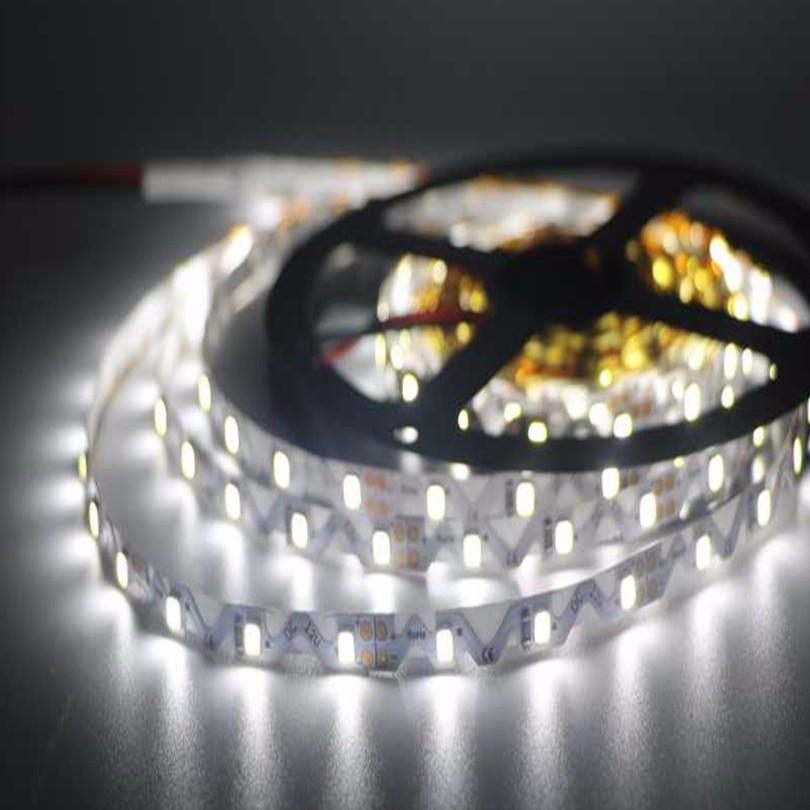

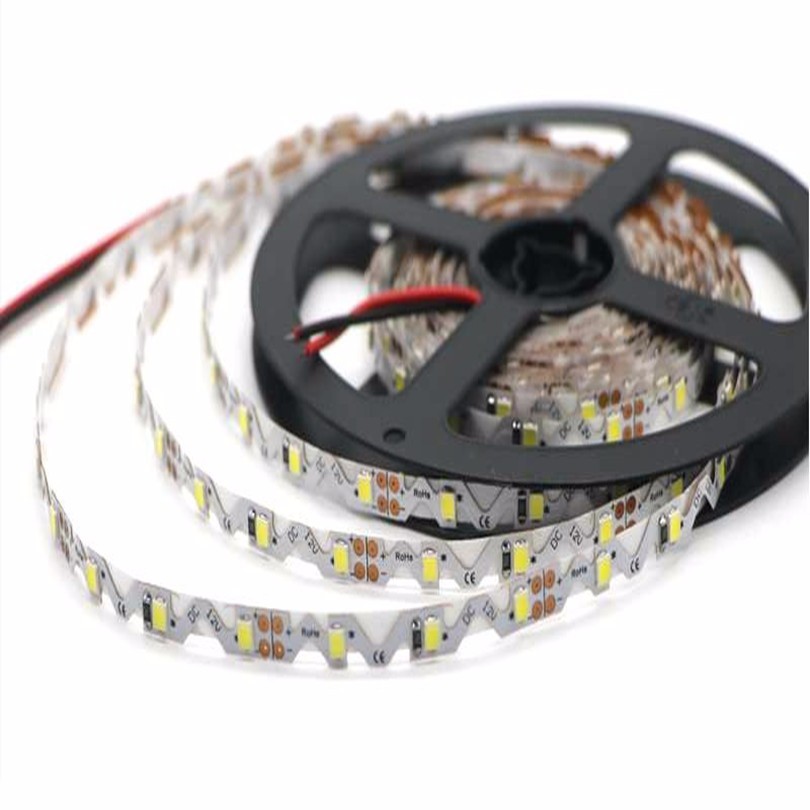

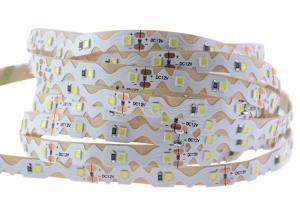

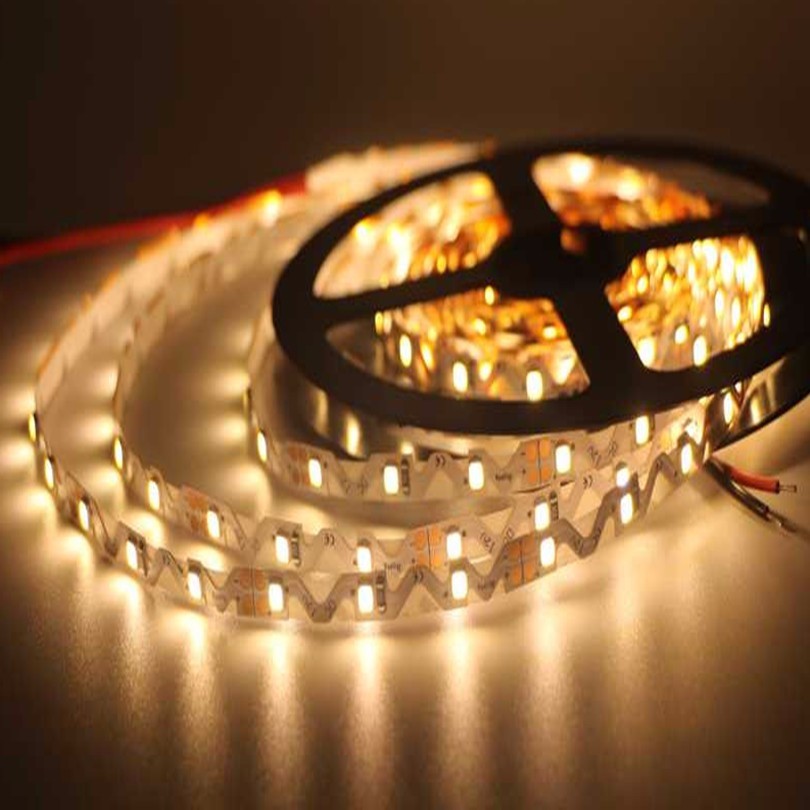

S Shape 2835 5050 SMD Bendable Flexible Led Strip Lights DC12V 24V Flexible Easy Install
Specifications:
Item No: S Shape Led strip 2835,brighter than 3528
led type: SMD 2835
led Quantity: 60led/meter
Light Color: Red/Green/Blue/White/Warm white
Lumen:8-10lm per led
Power:25W
Volatge: DC12V
Waterproof Grade: Non-Waterpoof IP44
PCB Color: White
Net Weight: 60G
Warranty: 2years
Certification: RoHS CE
Package: 5M led strip (5M in a roll)
Fearture:
New Products with high quality and high brightness, S Shape, be widely used for Channel Letter, backlighting
Easy Install, Adhesive tape in the backside
Energy saving and environmentally friendly, green products
Low heat consumption, no UV or IR light radiation
Applications: Home lighting, Festival decorations, activities, venue set, exhibition decoration, hall decoration,Hotels and other entertainment decorated KTV
Advantages:
1 Lifespan more than 50,000hrs
2 CE&ROHS approved
3 Water proof IP30
4 High visual impact and excellent brightness
5 Cuttable at every 3 led,easily connection
6 Energy efficient,major reductong in power costs
Applications:
1. Commercial and Residential
2. Archways
3. LED Cove Lighting
4. Channel Letter
5. Decorative LED lights for events
6. Display Cases
7. Home Theatre
8. Kiosks
9. LED Home Lighting
10. Outside Area
11. Paths & Contour
12. Hostess Stations
13. Edge lighting booths
14. Windows
| Model NO. | PS-S508160-2835 |
| Power Consumption | 9.6W/M |
| Work Voltage | DC12V |
| Work Current | 0.8A |
| Beam Angle | 140°-180° |
| LED Encapsulation | SMD 2835 |
| LED Quantity | 60LEDS/M |
| Color | Single Color(White,Warm White,Cold White,Red ,Green,Blue,Yellow,Pink) |
| FPC Color | Yellow Or White or Black |
| FPC Dimension | 50*80*0.1cm |
| Waterproof Grade | IP33 |
| Work Temperature | -25-60deg |
| Light Decay | Less Than 3% After 3,000H |
| Life-span | 50,000H |
| Certificate | CE&ROHS |
| Every Roll | 3m |
| Warranty | 2 years |
| Luminous Flux | 540-650Lm/M (White:2700-12000K) |
| 500-610Lm/M (Red:620-630nm) |
| 820-920Lm/M (Green:510-525nm) |
| 200-280Lm/M (Blue:455-470nm) |
| 260-330Lm/M (Yellow:585-595nm) |
| LED Spacing | 33mm |
| Min.Cutting Unit | 3LEDS |
| Min.Cutting Length | 10mm |
| Max.Connecting In Series | 3M ,Or More Than 3M,Please Connect Them In Parallel |
| Application | Path&contour marking |
| Indoor and outdoor sign |
| Adverisement led backlight |
| Architectrual decorative lighting |
| Stairway accent lighting |
| Channel letter lighting |
| Message sign lighting |
