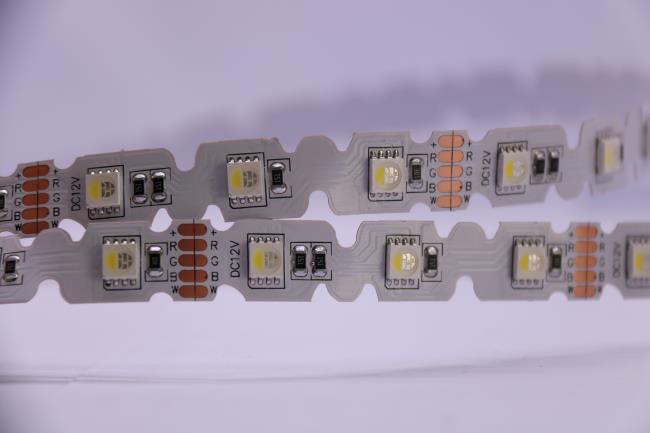

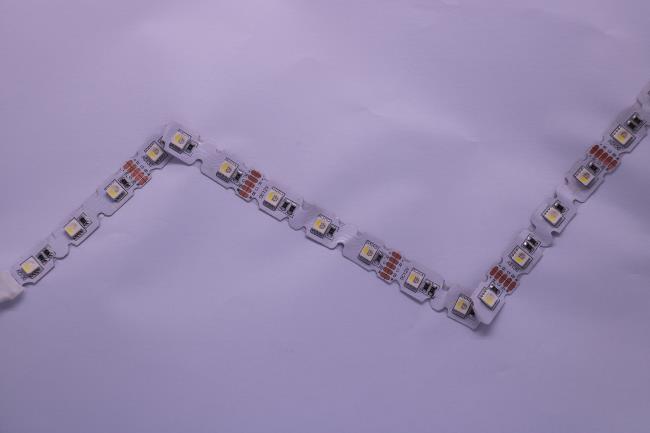

Carved Adhesive Flexible Led Strip Lights 5050RGBW 48LED/M 9.6W/M IP20 5m/reel.
Quick details :
1)SMD 5050 RGBW led used .
2)48led/m and 9.6W
3) Working voltage :DC12V
4)50,000 hour life
5)120° Viewing Angle
6)Superbrightness,even Illumination - No Shadowing
7) Utilizes 3M Double Stick Mounting Tape
8)Certification: CE&ROHS
9)Warranty period: three years .
Product description:
DC12V, 5050 RGBW , 48 LEDs/m
Product:5050 DC12V strip
Dimension: L5000mm*W12 mm*H0.25mm
LED quantity: 240 SMDs/pcs, 48 5050 RGBW SMDs/m
Thickness of PCB: 0.25mm
Working voltage: DC12V
Power dissipation: 9.6W/m
Working current: 4A/reel, 3led cuttable(DC12V)
Viewing angle: 120 degree
Packing: 5m/reel
Color: RGBW
Color of PCB: white
Product specification:
| Ordering Code | Colors Available | LED features | LED
Q’ty/m | PCB | Voltage
(VDC) | Max Power
(W/m) | Waterproof Grade available (IP) |
| PS55RGB12048-S | RGBW | Sanan5050 2500-3000mcd | 48 | 12mm white | 12VDC | 9.6 | IP20
/(IP65/IP67/IP68) |
FEATURES:
1). Low power consumption. High luminous
2). Every 3 LEDs can be cut with the marks, then re-join, “+,-”
3). Operating temperature: -40 to +50 degree Celsius
4). Match Power supplyer adapter, RGB Controller, Connector,
5). Low power consumption
6). Lower heating during operation
7). Continuous length with the quick connector
8). Reel peaking and strong adhesive back, 3M glue tape sticked attached, easy installation,
9). Cuttable every three LEDs to provide convenient installation with lesser illumination costs
10). Major reduction in power costs, low power consumption and high intensity.
