Slim 4mm Width RGB Flexible LED Strip Lights 3535 72Led / M For Architectural Decoration

Phenson Lighting Tech.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Slim 4mm Width RGB Flexible LED Strip Lights 3535 72Led / M For Architectural Decoration

Brand Name : Phenson

Model Number : PS35RGB012072IP20

Certification : CE,ROHS

Place of Origin : Shenzhen Guangdong China

MOQ : 5meters

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10,0000m

Delivery Time : 7~10 days

Packaging Details : 5m/roll, 500m/carton GW 15kg

Strip type : slim strip 4mm

LED : gold wire and copper lead-frame

LED Color : RGB light

Lighting source : SMD 3535

LED type : Sanan3535 2500-3000mcd

Power consumation : 14.4W/m

Warranty : 3 years

Working voltage : 12VDC

LED quantity : 72 led per meter

Working temperature : -20~40°C

PCB width : 4mm

Material : copper

Contact Now

Slim 4mm Width Flexible LED Strips 3535 RGB 72Led/M ShenZhen 3 Years Warranty

Quick details

1. LED chip:SMD3535.

2. Standard Reel Length: 5meter/roll, also can be customized.

3. Cutted: you can cut this stuff pretty easily with wire cutters

DC12V: cutted per 3LED, there are cut-lines every 41.6mm.

4. Power: 14.4W/M.

5. Power supply:

DC12V led strip: you must use a 12V DC power supply to connect this strip, do not use higher than 12V

DC24V led strip: please use 24V DC power supply.

6. Waterproof rating:

IP20:non-waterproof

IP65:drop glue waterproof

IP65:nano waterproof

IP67:silicone tube waterproof

IP68:glue-injection waterproof

7. Install: non-waterproof: with 3M adhesive on back side for sticky;

waterproof: screw+silicon clip, or 3M adhesive back side.

8. Life-span: more than 50,000 hours

9. Packing:usually 5meter/roll, 1roll/bag

black reel/white reel,anti-static bag

Technical parameters ,

Item Type SMD3535 LED Strip
Led Qty 72Leds/M
Voltage DC12V
Cutting size 41.6mm
Power 14.4W/M
Ra 80
Color RGB
PCB Color White
PCB width 5MM,two-wire copper circuit boards
IP Rating IP20
Beam Angle 120°
Certification CE/ROHS
Warranty

3 years

Product specification:

Ordering Code Colors Available LED features LED
Q’ty/m
PCB Voltage
(VDC)
Max Power
(W/m)
Waterproof Grade available (IP)
PS35RGB012072IP20 RGB Sanan5050 3000-3500mcd 72led 4mm white 3ounce 12VDC 14.4W

IP20

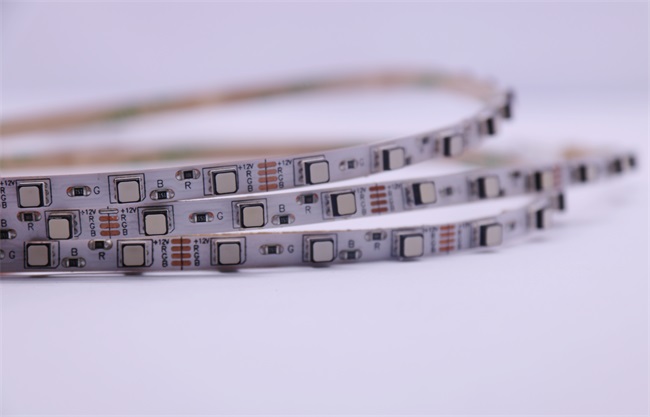

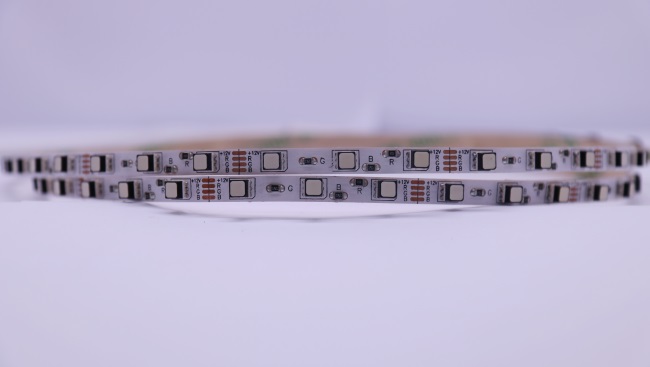

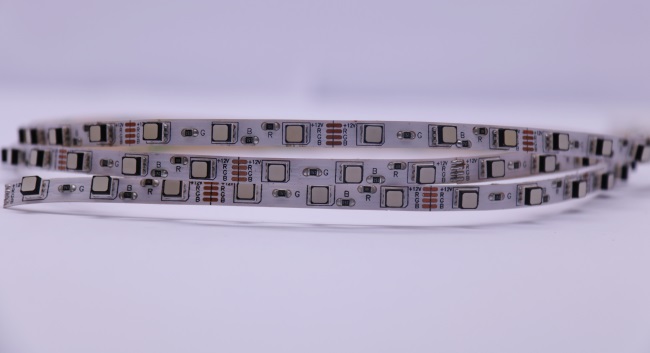

Slim 4mm Width RGB Flexible LED Strip Lights 3535 72Led / M For Architectural Decoration

Slim 4mm Width RGB Flexible LED Strip Lights 3535 72Led / M For Architectural Decoration

Slim 4mm Width RGB Flexible LED Strip Lights 3535 72Led / M For Architectural Decoration
