Constant Current 2835 120LED/M Rope light strip IP20 and IP68 20m/reel MAX
Product Description
1, IC driver used on this constand current led strip, no voltage drop, and max length can be 20m/reel .better performance on light effects and color consistency .
2, Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay

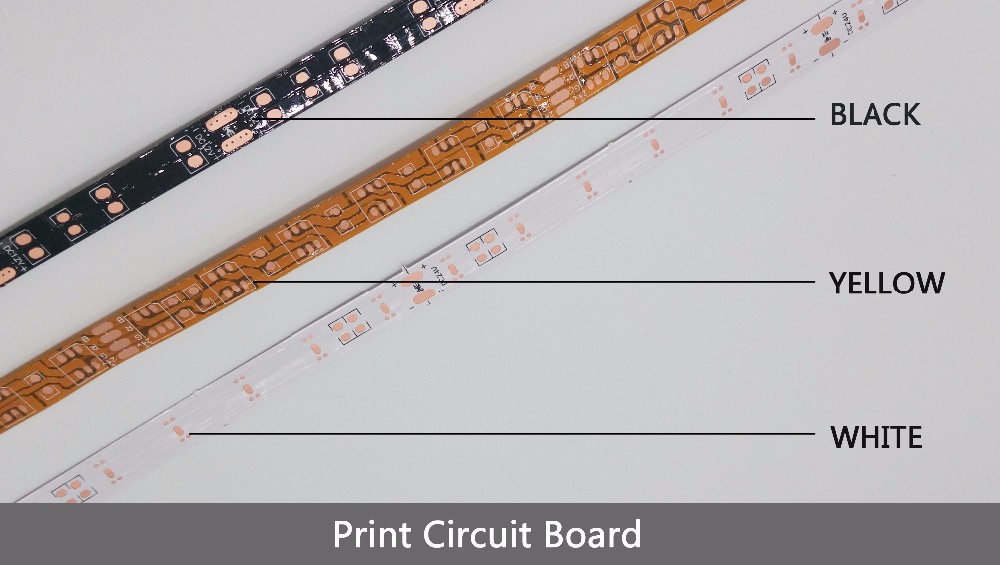

3, Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
4, We always require same bin number SMD LEDs for different production batches for the same customer.
5, We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch. Normally 5 MacAdam LED is +/-100K
6 We can produce 3 MacAdam LED Strip/tape as customer request.
Product Specification
| Ordering Code | Colors Available | LED features | LED
Q’ty/m | Typ Lum. intensity (lm/m) | PCB | Voltage
(VDC) | Max Power
(W/m) | Waterproof Grade available (IP) |
| PS28CW024120-CC | Cool white | 6000K~6500K (CCT) | 120 | 2500lm | White color
width 10 mm 3ounce | 24VDC | 24 | IP20
/(IP65/IP67/IP68) |
| PS28WW024120-CC | Neutral white | 4000K~4500K (CCT) | 2500lm |
| PS28NW024120-CC | Warm white | 3000K~3500K (CCT) | 2500lm |

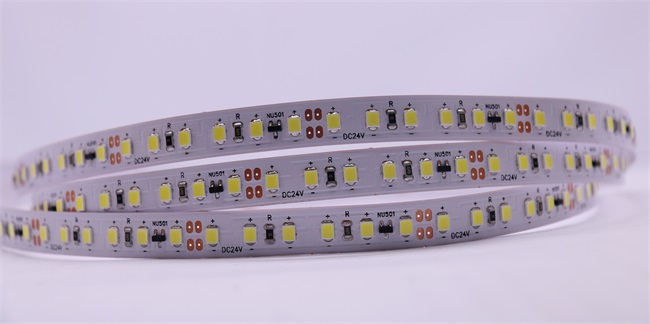

Picture Show
Waterproof Grade
IP20:Non-waterproof, available indoor.
Ip65:silicone glue or epoxy resin, can prevent the splashing water invade, available indoor.
IP67:Silicone tube, hollow, can prevent the big wave water invade; available indoor and outdoor.
IP68:Silicone tube +silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor,outdoor and water

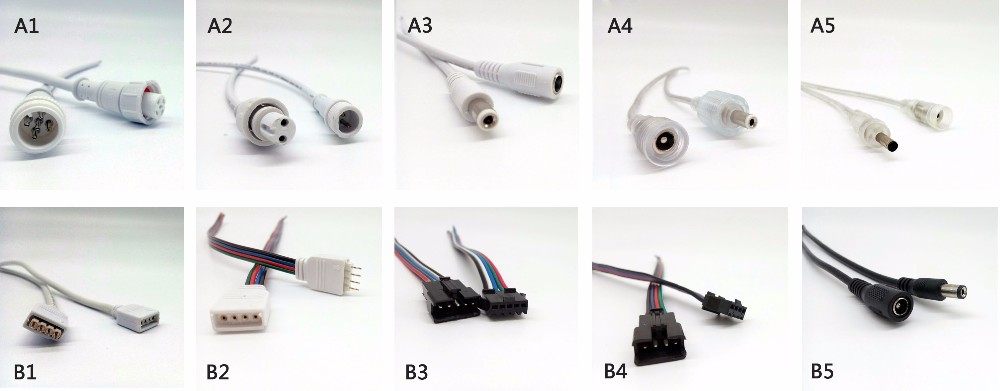

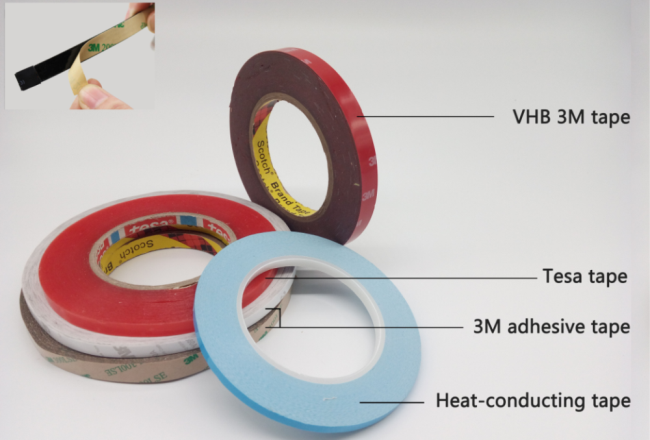

Accessories
Product Tags:
|
|
Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX Images
|
