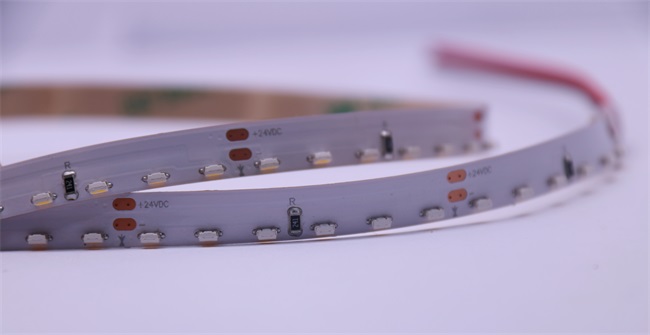

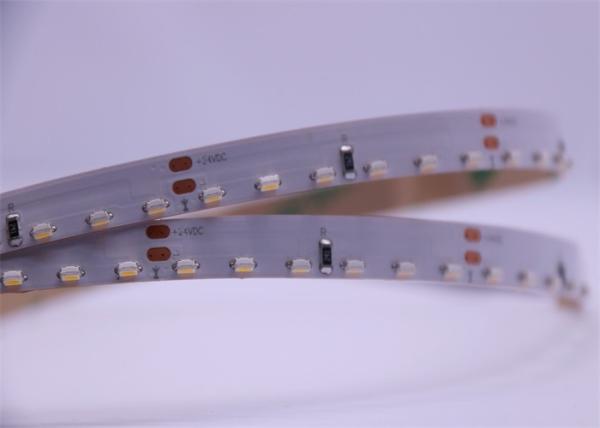

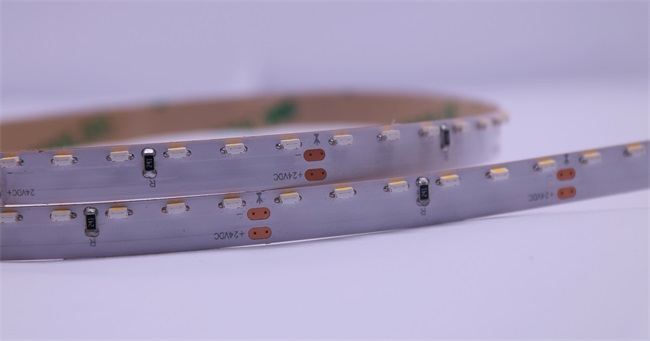

Side-emitting 3014 SMD Light Strip DC24V 120LED/M 20Watts IP20 IP67 IP68
Quick details
1. LED chip: side view SMD3014.
2. Standard Reel Length: 5meter/roll, also can be customized.
3. Cutted: you can cut this stuff pretty easily with wire cutters
DC24V: cutted per 6LED, there are cut-lines every 50mm.
4. Power: 12W/M.
5. Power supply:
DC12V led strip: you must use a 12V DC power supply to connect this strip, do not use higher than 12V
DC24V led strip: please use 24V DC power supply.
6. Waterproof rating:
IP20:non-waterproof
IP65:drop glue waterproof
IP65:nano waterproof
IP67:silicone tube waterproof
IP68:glue-injection waterproof
7. Install: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.
8. Life-span: more than 50,000 hours
9. Packing:usually 5meter/roll, 1roll/bag
black reel/white reel,anti-static bag
Technical parameters
| Item Type | SMD3014 LED Strip |
| Led Qty | 120 Leds/M |
| Voltage | DC24V |
| Cutting size | 50mm |
| Power | 12W/M |
| Ra | 80+ |
| Color | WW CW NW |
| PCB Color | White |
| PCB width | 8 MM,two-wire copper circuit boards |
| IP Rating | IP20 |
| Beam Angle | 120° |
| Certification | CE/ROHS |
| Warranty | 3 years |
Product specification:
| Ordering Code | Colors Available | LED features | LED
Q’ty/m | Typ Lum. intensity (lm/m) | PCB | Voltage
(VDC) | Max Power
(W/m) | Waterproof Grade available (IP) |
| PS3014CW24120-SL | Cool white | 6000K~6500K (CCT) | 120 | 1000 | White color
width 8mm 2ounce | 24VDC | 12 | IP20
/(IP65/IP67/IP68) |
| PS3014WW24120-SL | Neutral white | 4000K~4500K (CCT) | 1000 |
| PS3014NW24120-SL | Warm white | 3000K~3500K (CCT) | 1000 |
Applications:
1)Architecture car or home decoration;
2)Light boxes and billboards backlighting;
3)Channel letters backlighting;
4)Advertising signs backlighting;
5)Amusement park, theater and aircraft cabin mood lighting;
6)walkway, stairway, hallway lighting.etc
