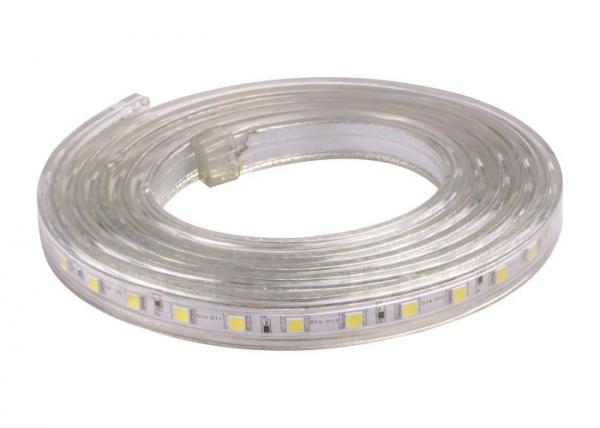

Soft Waterproof IP68 3528 Red , Yellow , White , RGB High Voltage LED Strip Light
Parameter :
| Item No: | PS-HRF301210220S-R |
| Voltage | AC100-120V or 220-240V (50-60Hz) |
| Power | 350W/100m |
| Color | R/Y/B/G/W/RGB |
| Length | 100m/reel |
| LED sources | smd 3528 |
| LED Qty | 60pcs/meter |
| IP grade | IP67 |
| Cuttable unit | every meter |
| Lifespan | 50,000 hours |
| Warranty | 2 years |
| Certifications | CE and RoHS |
| Function | Chasing,twinkling,Skip,Guadual changing,static single color |
Feature :
1. CRI>80+RA / 90+RA
2. good color consistency, +/-100K CCT range for Warm White and Nature White +/-150K-200K for White
3. Gold bonding wire, copper lead frame;
4. 100% of famous led package
5. Excellent heat display, 2-4 oz double sided thick copper PCB;
6. UL, RoHS, CE, listed;
7. Real 3M 300LSE, 5952 tape; 55280 Tape.
8. Low voltage drop, 18/2, 20/2 AWG;
9. Low voltage drop, 24V is only an half of 12V;
10. High brightness, it is up to 22-24lm/led.
11. Super quality RGB LED Strip
Description :
1. 110V/220V can be directly used with a power cord without extra adapter or power source.
2. Max Length can be100 meters and can be cut or connected by every one meter.
3. PVC tube provides good waterproof and can be used both indoor & outdoor.
4. Solid-state for high vibration resistance and good flexibility for any shape.
5, Packing is 100 meter one roll .
6, Easy installation and save cost on power supply.
How to install?
1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little, it will
be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
5. Do not use to much strength while pulling the plastic lock, otherwise it can destroy the connector.
